Rotary Shaft Lip Seal Selection & Troubleshooting Guide Solving 80% of Premature Seal Failures

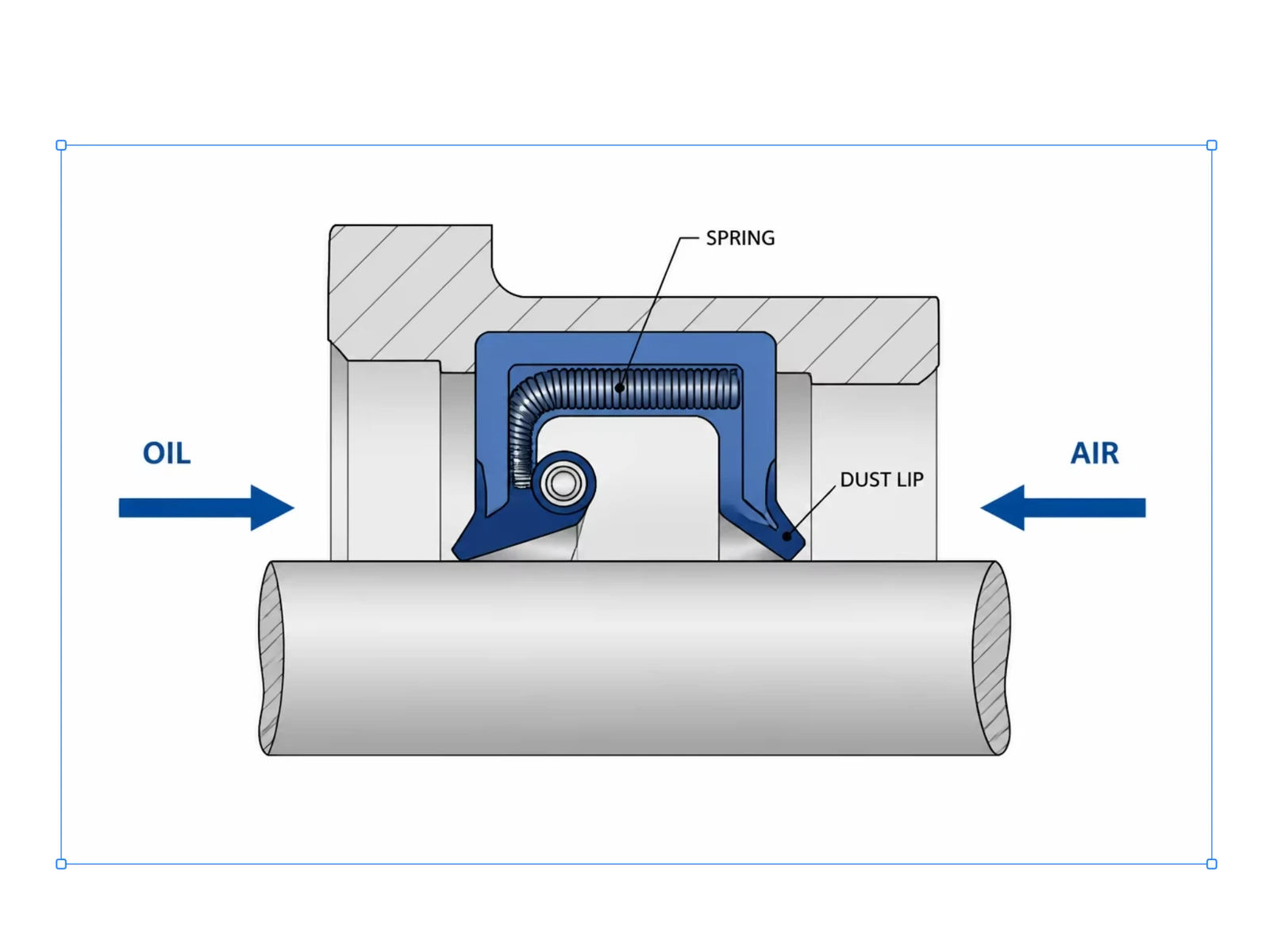

The rotary shaft lip seal (oil seal) is one of the most frequently used dynamic sealing elements in industrial machinery. Field data consistently show that approximately 80% of premature oil seal failures are not caused by product defects — they result from incorrect selection, improper installation, or overlooked operating conditions. This guide covers the sealing mechanism, material selection criteria, structural types, standard installation procedures, and root cause failure analysis. It is written for maintenance engineers, procurement specialists, and assembly technicians who need practical, field tested answers. Keywords: oil seal, rotary shaft seal, seal selection, installation guide, failure analysis, NBR, FKM 1. Sealing Mechanism An oil seal does two things: It keeps lubricant (oil or grease) inside the housing. It keeps contaminants (dust, mud, sand, water) outside. The sealing effect is not achieved by "tightly gripping" the shaft. Instead, it works through three interacting physical mechanisms: Radial Force Control: The seal lip has a smaller inner diameter than the shaft. When installed, the lip deforms radially and creates initial contact pressure. The garter spring adds constant, self compensating radial force. This ensures the lip maintains contact even when the shaft wears slightly or vibrates. Dynamic Oil Film: Between the lip and the shaft surface, there is a microscopic oil film approximately 0.001 to 0.0025 mm thick. This film prevents oil from leaking out, lubricates the contact zone reducing wear, and carries away frictional heat. Hydrodynamic Effect: The lip geometry (such as the angled sealing edge and microscopic helical return lines) creates a slight pumping action during shaft rotation. This pumps any oil that tends to leak back into the housing. Key takeaway: A very slight oily film on the lip area is normal. It is not a leak. 2. Oil Seal Classification 2.1 By Structural Design Rubber coated metal case (B type): Metal case fully encapsulated in rubber; most common general purpose type Metal cased exposed (W type): Metal case exposed on outer diameter; for tight installation space All rubber (no case): No metal reinforcement; for light duty, low speed, or soft metal housings Combination seal: Seal combined with excluder or sleeve; for extreme dust/mud/water conditions 2.2 By Lip Count Single lip: Main sealing lip only; for clean environments Double lip (TC): Main lip + dust lip; for dusty or outdoor conditions Selection note: If your equipment operates outdoors or in dusty conditions, always choose a double lip seal. 2.3 By Spring Position Internal spring: Spring on air side of lip; standard design External spring: Spring on oil side of lip; use when sealing medium contains solid particles 3. Material Selection Material selection directly determines seal life. NBR (Nitrile): 40 to +120°C. Excellent oil resistance. Mineral oils, hydraulic fluids, gasoline, diesel, grease. Most widely used general purpose material. FKM (Fluoroelastomer): 20 to +200°C. Very good oil resistance. High temp oils, phosphate esters, acids, solvents. For high temperature and chemically aggressive environments. ACM (Polyacrylate): 25 to +150°C. Very good oil resistance. High temp gear oils, ATF. For automotive transmissions, axles, power steering. VMQ (Silicone): 60 to +230°C. Fair oil resistance. Extreme temperature applications (no petroleum oils). For food machinery, aerospace, medical devices. PTFE (composite lip): 200 to +260°C. Excellent oil resistance. Nearly all chemicals. For corrosive media, high surface speed 15 m/s. Selection priority: 1. Media compatibility — the seal material must be chemically compatible with the lubricant 2. Temperature range — confirm the material covers the full operating range including cold starts 3. Surface speed and pressure — check against the seal's rated limits 4. Cost optimization — after meeting the above, select the most economical option Common mistake: Selecting NBR for a high temperature application 120°C because "we always use NBR." At 130°C continuous, NBR hardens and cracks within weeks. FKM is the correct choice. 4. Standard Installation Procedure 4.1 Pre Installation Checklist Shaft surface roughness: Ra 0.2 0.8 um (minimum Ra 0.8). If not, polish or rework shaft. Shaft surface hardness: = HRC 55 (induction hardened). If not, surface harden. Shaft surface condition: No scratches, corrosion, or directional tool marks. If present, grind or replace shaft. Housing bore diameter: Within seal OD tolerance (typically H8). If not, ream or replace housing. Housing bore chamfer: Chamfer present, no burrs. If not, deburr and chamfer. Housing cleanliness: Free of chips, old seal residue, oil. Clean with compressed air or solvent. Critical note: Shaft surface roughness is the single most important factor affecting seal performance. If Ra exceeds 0.8 um, lip wear accelerates rapidly. If Ra is below 0.05 um, the oil film cannot form and the lip runs dry. 4.2 Step by Step Installation Step 1: Lubricate the lip. Apply a thin, even layer of grease (preferably the same grease used in the equipment) to the main sealing lip. Never install a dry lip — dry start causes immediate lip damage. Step 2: Confirm installation direction. Main lip (spring side) faces the oil side. Dust lip (if present) faces the air side. A reversed seal leaks immediately. Double check orientation before pressing. Step 3: Use proper installation tooling. Use a correctly sized pressing sleeve or purpose built tool. Press the seal squarely, smoothly, and vertically into the housing bore. Pressing speed should not exceed 5 mm/s to prevent spring displacement. Step 4: Prohibited actions: Striking the seal with a hammer or hard metal case deformation, lip damage, spring dislodgement Pulling the seal over unprotected threads or splines lip scoring, seal fails immediately upon installation Applying sealant to the outer diameter unless specified seal cannot expand properly, may back out Reu
