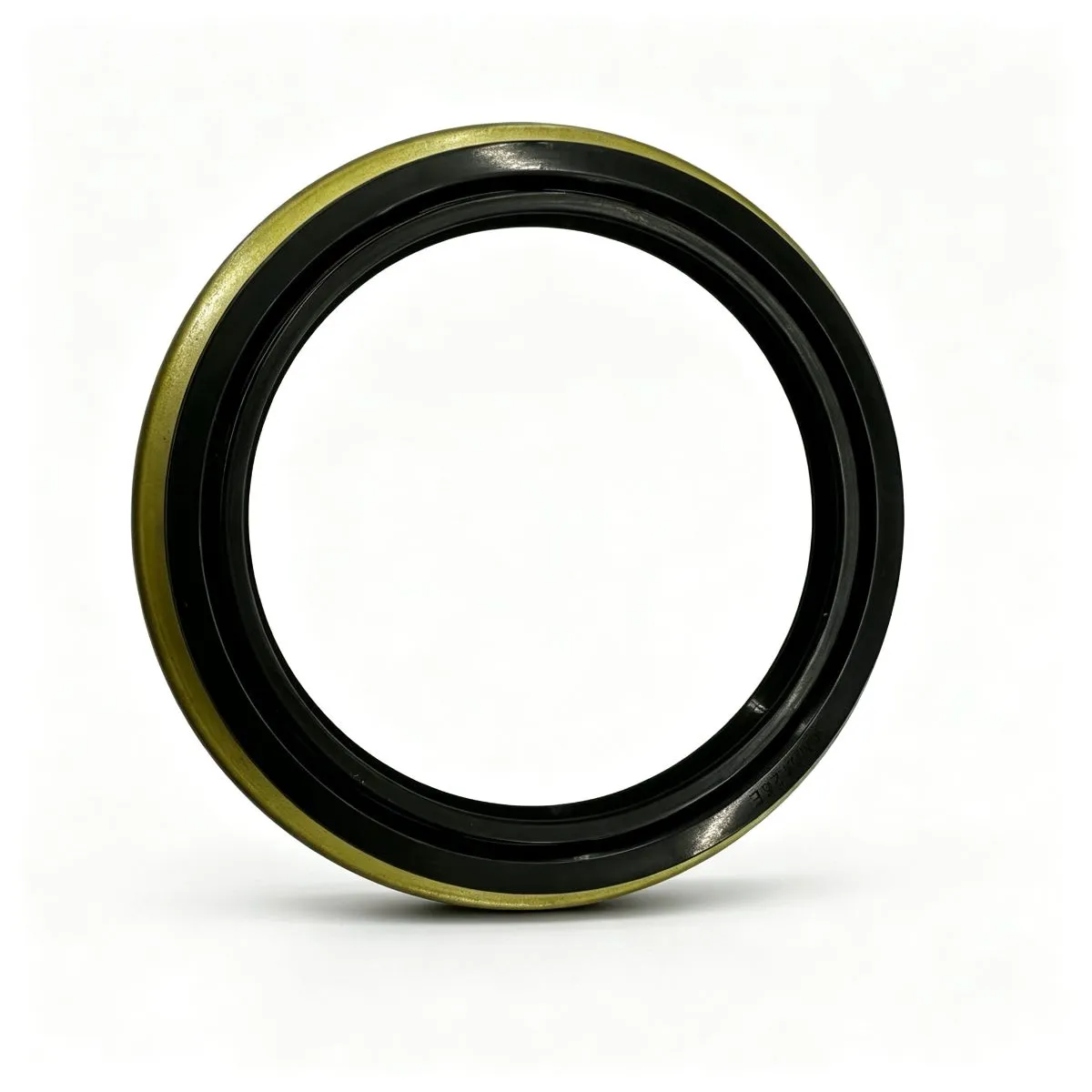

72x89.5x6.5/16 mm TC‑Type Front Wheel Hub Oil Seal,

Aftermarket TC‑type front wheel hub oil seal size 72x89.5x6.5/16 mm, OE reference XW0126E, 90316‑T0002, 90316‑72001. NBR double‑lip with garter spring, painted metal shell. Fits Toyota Hilux, Fortuner, Land Cruiser front axle hub, prevents grease leakage and blocks mud, dust and splash‑water. Stock and bulk export available.

Key specs: 内径 mm: 72 | 外径 mm: 89.5 | 高度 mm: 6.5/16 | 材料牌号: NBR | 规格型号: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring | 规格型号: 72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号72x89.5x6.5/16mm｜OE:XW0126E,90316‑T0002,90316‑72001｜Material:NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This 72x89.5x6.5/16 mm TC‑type wheel hub oil seal is aftermarket replacement for Toyota front axle hub assembly. It adopts painted metal outer shell for stable press‑fit mounting. Double‑lip design with garter spring maintains consistent radial pressure against rotating hub shaft. It keeps wheel‑hub grease inside hub assembly, and blocks road mud, splash‑water and dust ingress to protect wheel bearings, avoid premature bearing wear. Widely applied for Toyota Hilux Vigo, Fortuner, Land Cruiser series. Suitable for auto‑parts wholesalers, repair shops and overseas bulk procurement. Core functions Grease retention ：Prevent wheel‑hub lubricant leakage Dust & mud exclusion: Resist splash‑water and road contaminants Painted metal shell: Anti‑rust and stable interference fit Garter‑spring pre‑load: Reliable sealing under vehicle vibration

Material and process

Material ：NBR nitrile rubber sealing lip, anti‑rust painted carbon‑steel shell, stainless steel garter spring Structure ：TC‑type double‑lip rotary shaft oil seal Key properties ：Grease‑resistant, dust‑proof, vibration‑resistant, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between rubber lip and metal shell, resist delamination under vehicle vibration. Precision‑ground sealing lip reduces friction heat and extends service‑life. Anti‑rust painted metal shell improves storage performance in humid environment. NBR compound compatible with automotive wheel‑hub grease and chassis lubricants. Upgrade option ：FKM fluoro‑rubber version for higher‑temperature working environment.

Application and compatibility

Product Type ：TC‑type front wheel hub oil seal for Toyota 4‑WD vehicles Key dimension ：ID72mm × OD89.5mm × dual width6.5/16mm OE reference number: XW0126E, 90316‑T0002, 90316‑72001 Compatible media ：Wheel‑hub grease, chassis lubricating grease. Working conditions: Front wheel hub, withstand vibration, mud and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit models ：Toyota Hilux Vigo, Fortuner, Land Cruiser series front axle hub. Buyer reminder ：This is aftermarket replacement part. Please verify shaft diameter, housing bore and OE number before placing order. Mismatch dimension will cause grease leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID72mm, OD89.5mm, dual width6.5/16mm and cross‑check OE number XW0126E / 90316‑T0002 /90316‑72001. 2. Standard NBR for regular chassis grease environment; select FKM upgrade for high‑temperature scenarios. 3. Inspect hub shaft and housing bore before installation; repair shaft wear, rust and burrs. Damaged mating surfaces will lead to early leakage. Installation Steps Preparation Clean hub housing bore and shaft surface thoroughly, remove old seal residue, grease dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matching wheel‑hub grease. Dry installation is strictly forbidden; dry friction will damage sealing lip. Orientation Confirmation Main sealing lip faces hub grease cavity; dust lip faces outward to road side. Wrong installation direction causes grease leakage and loses dust‑proof function. Vertical Press‑fit Use proper press‑sleeve tool to press oil‑seal evenly and vertically. Never strike rubber lip directly to avoid shell deformation and lip tearing. Seating Inspection Ensure oil‑seal sits fully flush inside housing bore without tilt. Visual Check Inspect sealing lip for tears and shell deformation. Tiny invisible damage triggers seepage after commissioning. Rotation Test Manually rotate hub assembly to confirm smooth movement without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each unit to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：50‑200 pcs per carton, adjustable per order requirement. MOQ ：No MOQ for stock items, sample order acceptable; bulk stock order MOQ:300 pcs. Lead‑time ：Stock items ship within 3‑5 working days; custom logo, color and export‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and compression‑resistant packing to prevent seal deformation during transit.

FAQ

How to submit an RFQ and get a quotation?

1) Open the inquiry page and enter company and contact details. 2) Provide model/size/quantity and duty conditions. 3) Note sample needs (intent=sample) when required. 4) Submit — we typically reply within 24 hours with an actionable quote and lead time. Final price and schedule follow the formal quotation.

What is your typical MOQ? Can you support small trial orders?

We support small trial lots for standard items. Production MOQ depends on tooling, material and process. Submit model/size/qty via the inquiry form for an actionable MOQ and lead time. Final price and schedule follow the formal quotation.

What are lead times for standard vs custom parts?

Stock/standard sizes are faster; custom dimensions, special materials or tooling take longer. Lead time depends on quantity and capacity—confirm via RFQ. Mark urgent needs in the inquiry notes.

I only have a competitor/OEM part number—can you cross-reference?

Yes. Provide the reference PN, key dimensions (ID/OD/height) and duty (media, temperature, pressure). We match equivalents in the catalog; use the Cross Reference page for keyword search. Final selection follows drawing and duty confirmation.

Which sealing materials do you use? How to choose for high temperature or special media?

Common materials include NBR, FKM/FPM, PTFE and silicone—matched to media, temperature and pressure. Share working temperature, media and motion type; we recommend a grade and note limits on the quote.

Do you support OEM/ODM, private packing and marking?

Yes—OEM/ODM from drawings/samples and agreed packing/marking. Share target market compliance needs and volume estimates; we confirm feasibility, tooling and production cadence at RFQ.

Do you export? What trade terms and payment methods are available?

We export to international buyers. Terms and payment (e.g. T/T) are confirmed during RFQ. Note destination port/country and preferred terms; formal contracts and PIs follow mutual confirmation.

What QC is done before shipment? Can you provide test reports?

Pre shipment dimensional/visual checks per order; material certificates or test reports available as agreed by product/lot. Specify document types and standards in the RFQ.

How do I request samples? How are sample and freight fees handled?

Use the inquiry form with sample intent, model/size and ship to address. Sample/freight waivers depend on item and partnership intent—confirmed by sales email. Provide full specs to avoid wrong shipments.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

What are the advantages of your company?

We have Impressive Professional Technology, Experienced Technical Staffs, Strict Inspection Procedures, High Quality and Afforable Prices On Time Delivery, Problems identification & Solutions offers. Seal Design Proposal offers. Seals Tests for Endurance and Performance, PPAP Level IIl Submission. Strick Process Control, International Standard Criterias.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF.

How about your delivery time?

Existing molds: 30 days, depending on ordering quantity. New Molds: 60 days, depending on ordering quantity. Samples Submission: 21 28 days with existing toolings.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery

What is this 72x89.5x6.5/16 oil seal used for?

This TC‑type double‑lip oil seal is aftermarket front wheel hub replacement seal for Toyota Hilux, Fortuner and Land Cruiser, keeps hub grease inside and blocks mud‑water ingress for front axle hub.

What are OE numbers and full specifications?

Size: ID72mm × OD89.5mm × width6.5/16 mm; OE: XW0126E,90316‑T0002,90316‑72001; Material:NBR lip + painted carbon‑steel shell + garter spring; Working temperature:‑20℃ 120℃; Application: Toyota front wheel hub.

Which vehicles fit 90316‑T0002 oil seal?

It fits Toyota Hilux Vigo, Fortuner, Land Cruiser series 4‑WD front wheel hub assembly.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.
