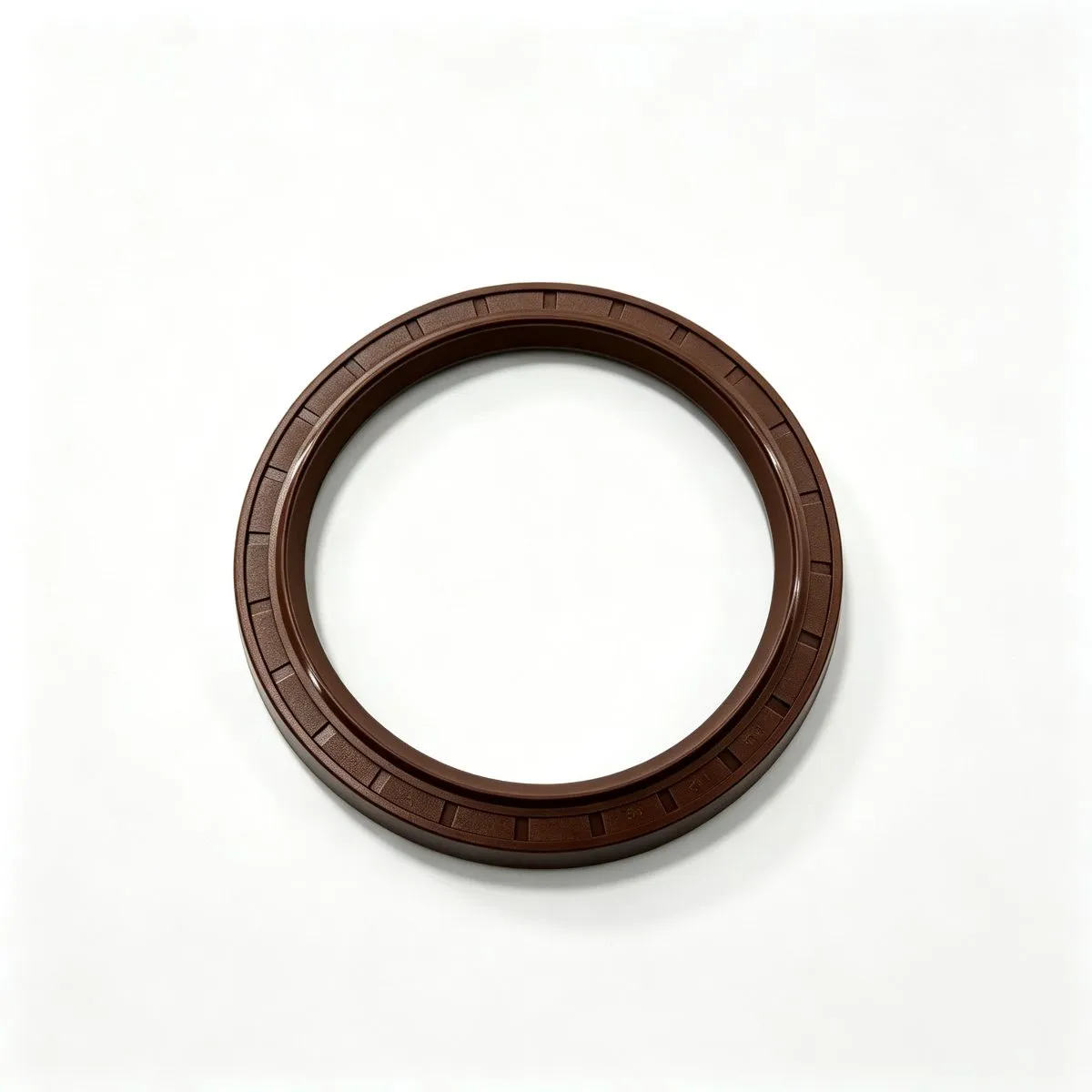

100x132x13mm Brown NBR Oil Seal, Brand New Factory

Brand‑new factory‑direct 100×132×13 mm brown NBR TC oil seal. Double‑lip with garter spring design, widely used for automotive rotating shaft sealing. Effectively prevents oil leakage and keeps dust, grit and splashing water out. Ready stock / custom‑order available for auto repair and aftermarket bulk procurement.

Key specs: 内径 mm: 100 | 外径 mm: 132 | 高度 mm: 13 | 材料牌号: NBR | 规格型号: 100x132x13mm｜Material:Brown NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring｜Fit for general automotive rotating shaft sealing | 规格型号: 100x132x13mm｜Material:Brown NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring｜Fit for general automotive rotating shaft sealing

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号100x132x13mm｜Material:Brown NBR rubber lip + painted carbon‑steel shell｜Structure:TC‑type double‑lip oil seal with garter spring｜Fit for general automotive rotating shaft sealing

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This factory‑direct brand‑new 100×132×13 mm TC oil seal adopts brown NBR nitrile rubber and metal shell construction, equipped with garter‑spring double‑lip structure for automotive rotating shaft sealing scenarios. Garter spring maintains stable radial pressure against the shaft surface. It retains lubricating oil inside the assembly and blocks external dust, sand and splash‑water intrusion. Suitable for auto repair workshops, auto‑parts wholesalers and cross‑border bulk purchasing. Core functions Oil retention ：Prevent lubricant leakage under vehicle vibration and working temperature fluctuation Dust & water exclusion: Block dust, grit and splash‑water to protect internal moving components Reinforced metal shell: Reliable interference fit for housing bore during press‑fit installation Garter‑spring pre‑load: Consistent sealing performance under continuous vibration

Material and process

Material ：Brown NBR nitrile rubber sealing lip, anti‑rust painted carbon‑steel shell, stainless steel garter spring Structure ：TC‑type double‑lip rotary shaft oil seal Key properties ：Oil‑resistant, dust‑proof, vibration‑resistant, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between NBR rubber and metal shell, resist separation under vehicle vibration. Precision‑ground sealing lip reduces friction heat and extends service life. Anti‑rust treated metal shell adapts to ordinary automotive under‑hood and chassis environment. Brown NBR compound compatible with common automotive engine oil, gear oil. Upgrade option ：FKM fluoro‑rubber version for higher‑temperature working conditions.

Application and compatibility

Product Type ：TC‑type rotary shaft oil seal for automobile Key dimension ：ID100mm × OD132mm × Width13mm Compatible media ：Automotive engine oil, gear oil and general lubricants. Working conditions: Automotive rotating shaft, withstand normal vehicle vibration and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit applications ：Aftermarket replacement seal for general automotive sealing. Buyer reminder ：This is non‑standard aftermarket replacement spare part, no universal OEM part‑number available. Please verify shaft diameter, housing bore and seal structure before placing order. Dimension mismatch will result in oil leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID100mm, OD132mm, width13mm and TC double‑lip seal structure. 2. Standard brown NBR for regular automotive lubricant environment; select FKM upgrade for high‑temperature scenarios. 3. Inspect shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will cause premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean housing bore and shaft surface, remove old seal residue, oil dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched lubricant. Dry installation is strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward oil cavity; dust lip faces outward. Wrong installation direction causes oil leakage and poor dust‑proof effect. Vertical Press‑fit Use dedicated press‑sleeve tool to press oil seal evenly and vertically. Never strike rubber lip directly to avoid shell deformation and lip tearing. Seating Inspection Ensure seal sits fully flush inside housing bore without tilt. Visual Check Check sealing lip for nicks and shell deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

How to submit an RFQ and get a quotation?

1) Open the inquiry page and enter company and contact details. 2) Provide model/size/quantity and duty conditions. 3) Note sample needs (intent=sample) when required. 4) Submit — we typically reply within 24 hours with an actionable quote and lead time. Final price and schedule follow the formal quotation.

What is your typical MOQ? Can you support small trial orders?

We support small trial lots for standard items. Production MOQ depends on tooling, material and process. Submit model/size/qty via the inquiry form for an actionable MOQ and lead time. Final price and schedule follow the formal quotation.

What are lead times for standard vs custom parts?

Stock/standard sizes are faster; custom dimensions, special materials or tooling take longer. Lead time depends on quantity and capacity—confirm via RFQ. Mark urgent needs in the inquiry notes.

I only have a competitor/OEM part number—can you cross-reference?

Yes. Provide the reference PN, key dimensions (ID/OD/height) and duty (media, temperature, pressure). We match equivalents in the catalog; use the Cross Reference page for keyword search. Final selection follows drawing and duty confirmation.

Which sealing materials do you use? How to choose for high temperature or special media?

Common materials include NBR, FKM/FPM, PTFE and silicone—matched to media, temperature and pressure. Share working temperature, media and motion type; we recommend a grade and note limits on the quote.

Do you support OEM/ODM, private packing and marking?

Yes—OEM/ODM from drawings/samples and agreed packing/marking. Share target market compliance needs and volume estimates; we confirm feasibility, tooling and production cadence at RFQ.

Do you export? What trade terms and payment methods are available?

We export to international buyers. Terms and payment (e.g. T/T) are confirmed during RFQ. Note destination port/country and preferred terms; formal contracts and PIs follow mutual confirmation.

What QC is done before shipment? Can you provide test reports?

Pre shipment dimensional/visual checks per order; material certificates or test reports available as agreed by product/lot. Specify document types and standards in the RFQ.

How do I request samples? How are sample and freight fees handled?

Use the inquiry form with sample intent, model/size and ship to address. Sample/freight waivers depend on item and partnership intent—confirmed by sales email. Provide full specs to avoid wrong shipments.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

What are the advantages of your company?

We have Impressive Professional Technology, Experienced Technical Staffs, Strict Inspection Procedures, High Quality and Afforable Prices On Time Delivery, Problems identification & Solutions offers. Seal Design Proposal offers. Seals Tests for Endurance and Performance, PPAP Level IIl Submission. Strick Process Control, International Standard Criterias.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF.

How about your delivery time?

Existing molds: 30 days, depending on ordering quantity. New Molds: 60 days, depending on ordering quantity. Samples Submission: 21 28 days with existing toolings.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery

What is 100x132x13mm oil seal used for?

100x132x13mm TC oil seal, brown NBR material, brand‑new factory‑direct non‑standard aftermarket replacement part for general automotive rotating‑shaft sealing, prevents oil leakage and blocks dust and splash‑water.

What are full specifications?

Size:100x132x13mm; Material:Brown NBR lip + painted carbon‑steel shell + garter spring; Working temperature:‑20℃ 120℃; Application:General automotive rotating‑shaft sealing.

Which vehicle fits 100x132x13mm oil seal?

This is non‑standard TC oil seal for universal automotive aftermarket repair, no fixed matching vehicle model. Please confirm shaft dimension, housing bore and seal profile before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.
