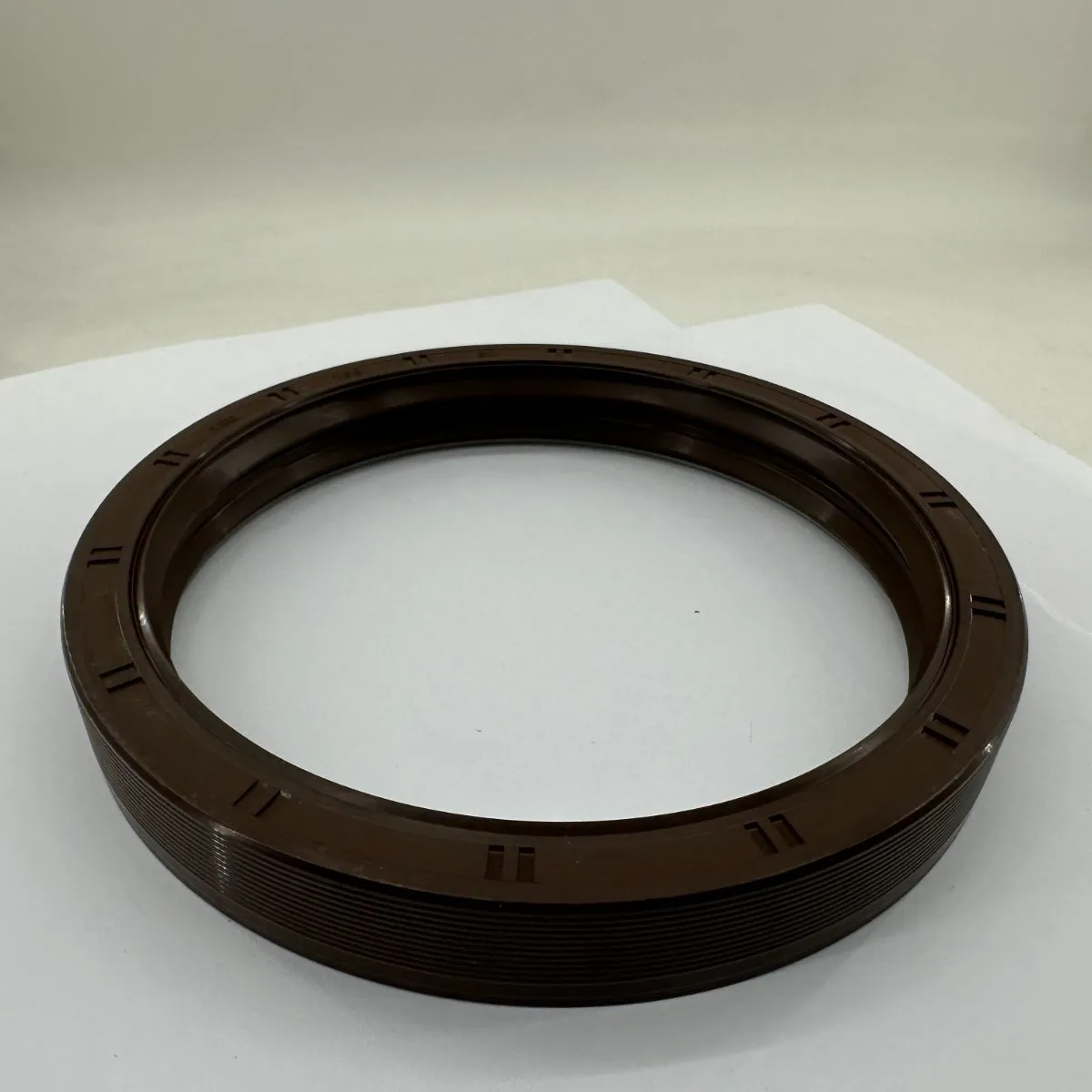

130x155x20mm TB‑Type Metal‑Cased Oil Seal, NBR Rubb

Factory‑new TB‑type metal‑cased skeleton oil seal, dimension 130×155×20 mm, NBR rubber sealing lip with metal outer shell and garter spring. Suitable for heavy‑duty commercial vehicle axle, hub and differential shaft assembly. Good oil‑resistant and wear‑resistant performance, prevents lubricant leakage and blocks mud, dust and splash‑water. High‑quality aftermarket spare part available for wholesale export.

Key specs: 内径 mm: 130 | 外径 mm: 155 | 高度 mm: 20 | 材料牌号: NBR | 规格型号: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft | 规格型号: 130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号130x155x20mm｜Material:NBR rubber + full metal case + garter spring｜Structure:TB type metal‑cased skeleton oil seal｜Fit for heavy‑duty commercial vehicle axle hub and differential shaft

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This TB‑style metal‑cased skeleton oil seal dimension 130×155×20 mm is brand‑new aftermarket replacement part for heavy‑duty commercial vehicle axle‑hub and differential shaft. Adopts rigid full‑metal outer shell bonded with NBR rubber sealing lip and built‑in garter spring. Effectively retain gear oil or bearing grease inside axle‑hub assembly, avoid lubricant leakage under heavy‑load vibration. Block sand, mud, dust and splash‑water from invading bearing and gear chamber. Widely used for vehicle repair workshops, domestic auto‑parts wholesale and cross‑border commercial‑vehicle‑parts export business. Core functions Prevent axle‑hub gear‑oil and bearing‑grease leakage under heavy‑duty driving vibration Isolate shaft assembly from mud, grit and splash‑water contamination Rigid metal‑cased structure ensures stable positioning and press‑fit installation Reliable sealing performance for long‑haul heavy‑duty transportation

Material and process

Material ：NBR nitrile rubber, full metal case, garter spring Structure ：TB type metal‑cased rotary shaft skeleton oil seal Key properties ：Oil‑resistant, wear‑resistant, dust‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features Firm vulcanization bonding between metal shell and rubber lip, stable performance under chassis bumping vibration. Precision‑formed sealing lip with garter spring maintains consistent radial pre‑load pressure. NBR compound has good compatibility with commercial‑vehicle gear‑oil and bearing grease. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

Product Type ：TB metal‑cased skeleton oil seal for heavy‑duty commercial vehicle Key dimension ：ID130mm × OD155mm, overall thickness20mm Compatible media ：Axle gear‑oil, wheel‑hub bearing grease, general chassis lubricants. Fit application ：Heavy‑duty commercial‑vehicle axle‑hub and differential shaft sealing. Buyer reminder ：This is aftermarket replacement spare part. Please verify shaft dimension and housing bore before placing order. Dimension mismatch will result in lubricant leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID130mm, OD155mm, thickness20mm and TB metal‑cased skeleton structure. 2. Standard NBR version for normal oil/grease environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean housing bore and shaft surface, remove old seal residue, dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched gear‑oil or bearing grease. Dry installation strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward lubricant cavity; dust‑proof metal‑shell side faces outward. Wrong installation direction leads to lubricant leakage and poor contamination‑resistance. Vertical Press‑fit Use dedicated press‑sleeve tool to press metal‑cased oil‑seal evenly and vertically. Never strike rubber lip or metal shell directly to avoid seal deformation and lip tearing. Seating Inspection Ensure seal sits fully flush inside housing bore without tilt. Visual Check Examine sealing lip for nicks and seal‑body deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

How to submit an RFQ and get a quotation?

1) Open the inquiry page and enter company and contact details. 2) Provide model/size/quantity and duty conditions. 3) Note sample needs (intent=sample) when required. 4) Submit — we typically reply within 24 hours with an actionable quote and lead time. Final price and schedule follow the formal quotation.

What is your typical MOQ? Can you support small trial orders?

We support small trial lots for standard items. Production MOQ depends on tooling, material and process. Submit model/size/qty via the inquiry form for an actionable MOQ and lead time. Final price and schedule follow the formal quotation.

What are lead times for standard vs custom parts?

Stock/standard sizes are faster; custom dimensions, special materials or tooling take longer. Lead time depends on quantity and capacity—confirm via RFQ. Mark urgent needs in the inquiry notes.

I only have a competitor/OEM part number—can you cross-reference?

Yes. Provide the reference PN, key dimensions (ID/OD/height) and duty (media, temperature, pressure). We match equivalents in the catalog; use the Cross Reference page for keyword search. Final selection follows drawing and duty confirmation.

Which sealing materials do you use? How to choose for high temperature or special media?

Common materials include NBR, FKM/FPM, PTFE and silicone—matched to media, temperature and pressure. Share working temperature, media and motion type; we recommend a grade and note limits on the quote.

Do you support OEM/ODM, private packing and marking?

Yes—OEM/ODM from drawings/samples and agreed packing/marking. Share target market compliance needs and volume estimates; we confirm feasibility, tooling and production cadence at RFQ.

Do you export? What trade terms and payment methods are available?

We export to international buyers. Terms and payment (e.g. T/T) are confirmed during RFQ. Note destination port/country and preferred terms; formal contracts and PIs follow mutual confirmation.

What QC is done before shipment? Can you provide test reports?

Pre shipment dimensional/visual checks per order; material certificates or test reports available as agreed by product/lot. Specify document types and standards in the RFQ.

How do I request samples? How are sample and freight fees handled?

Use the inquiry form with sample intent, model/size and ship to address. Sample/freight waivers depend on item and partnership intent—confirmed by sales email. Provide full specs to avoid wrong shipments.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

What are the advantages of your company?

We have Impressive Professional Technology, Experienced Technical Staffs, Strict Inspection Procedures, High Quality and Afforable Prices On Time Delivery, Problems identification & Solutions offers. Seal Design Proposal offers. Seals Tests for Endurance and Performance, PPAP Level IIl Submission. Strick Process Control, International Standard Criterias.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF.

How about your delivery time?

Existing molds: 30 days, depending on ordering quantity. New Molds: 60 days, depending on ordering quantity. Samples Submission: 21 28 days with existing toolings.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery

What is 130x155x20 oil seal used for?

130x155x20 mm TB metal‑cased skeleton oil seal, NBR material, aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub and differential shaft, prevents gear‑oil/grease leakage and blocks mud and dust.

What are full specifications?

Size:ID130mm × OD155mm, thickness20mm; Material:NBR rubber + full metal case + garter spring; Structure:TB metal‑cased skeleton seal; Working temperature:‑20℃ 120℃; Application:Heavy‑duty commercial‑vehicle axle‑hub and differential shaft sealing.

Which vehicle fits 130x155x20 oil seal?

This TB‑type metal‑cased oil seal is aftermarket replacement for heavy‑duty commercial‑vehicle axle‑hub and differential shaft. Please confirm shaft dimension and housing bore before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.
