118x174x16/28mm Cassette Truck Wheel Hub Oil Seal O

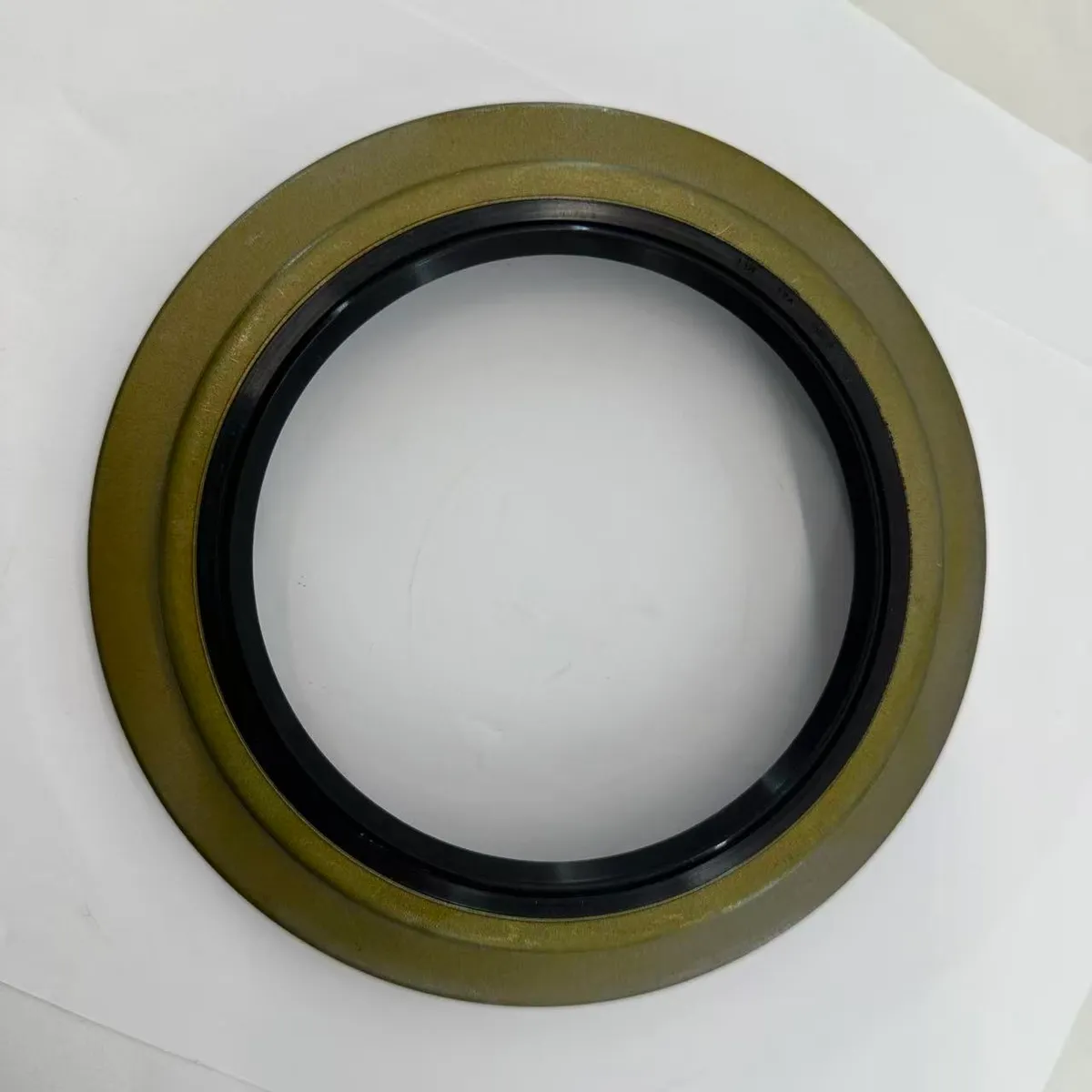

Factory‑new flange‑cassette wheel hub oil seal, dimension 118×174×16/28 mm, OEM numbers 1026679, 3453200450. NBR rubber with garter spring and flanged metal shell. Designed for heavy‑duty truck wheel hub assembly, retains bearing grease and blocks mud, dust and splash‑water. High‑quality aftermarket truck spare part, available for wholesale export.

Key specs: 内径 mm: 118 | 外径 mm: 174 | 高度 mm: 16/28 | 材料牌号: NBR | 规格型号: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub | 规格型号: 118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号118x174x16/28mm｜OEM:1026679,3453200450｜Material:NBR rubber + flanged metal shell + garter spring｜Structure:RWDR‑KASSETTE flanged cassette oil seal｜Fit for heavy‑duty truck wheel hub

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

This flanged cassette‑style wheel‑hub oil seal dimension 118×174×16/28 mm, cross reference OEM 1026679 and 3453200450, is aftermarket replacement part for heavy‑duty truck wheel hub. Adopts integrated cassette composite construction with flanged metal outer shell and built‑in garter spring. Effectively keeps wheel‑hub bearing grease inside hub assembly, prevents grease leakage under heavy‑load road vibration. Blocks mud, sand, dust and splash‑water from invading hub bearing chamber. Widely used for truck repair workshops, domestic auto‑parts wholesale and cross‑border heavy‑duty‑truck‑parts export business. Core functions Prevent wheel‑hub bearing grease leakage under heavy‑duty driving vibration Isolate hub bearing from mud, grit and splash‑water contamination Flanged cassette profile for stable positioning and press‑fit installation into hub housing bore Reliable sealing performance for long‑haul heavy‑duty transportation

Material and process

Material ：NBR nitrile rubber, flanged metal shell, garter spring Structure ：RWDR‑KASSETTE flanged‑cassette rotary shaft oil seal Key properties ：Grease resistant, mud‑proof, anti‑vibration, anti‑aging Working temperature:‑20℃ +120℃ Manufacturing features Vulcanized composite flange‑cassette structure, stable performance under chassis bumping vibration. Precision‑formed sealing lip with garter spring maintains consistent radial pre‑load pressure. NBR compound compatible with heavy‑duty truck wheel‑hub bearing grease. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load working scenarios.

Application and compatibility

Product Type ：Flanged cassette‑type wheel‑hub oil seal for heavy‑duty truck Key dimension ：ID118mm × OD174mm, mounting thickness16mm, overall height28mm OEM Part‑Number ：1026679, 3453200450 Compatible media ：Wheel‑hub bearing grease, general chassis lubricants. Fit application ：Heavy‑duty truck wheel‑hub sealing. Buyer reminder ：This is aftermarket replacement spare part for truck wheel hub. Please verify shaft dimension, housing bore, flange profile and OEM reference numbers before placing order. Dimension mismatch will result in grease leakage after installation.

Selection guide

Selection Tips 1. Confirm dimension ID118mm, OD174mm, mounting thickness16mm, total height28mm, flanged cassette‑type structure and OEM numbers 1026679 / 3453200450. 2. Standard NBR version for normal hub‑grease environment; select FKM upgrade for high‑temperature heavy‑load working condition. 3. Inspect shaft and hub housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Thoroughly clean hub housing bore and shaft surface, remove old seal residue, dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched wheel‑hub bearing grease. Dry installation strictly forbidden; dry friction will damage sealing lip quickly. Orientation Confirmation Main sealing lip points toward hub bearing grease cavity; dust‑proof flange side faces toward wheel outer side. Wrong installation direction leads to grease leakage and poor contamination‑resistance. Vertical Press‑fit Use dedicated press‑sleeve tool to press flanged cassette oil‑seal evenly and vertically. Never strike rubber body or flange metal shell directly to avoid seal deformation and lip tearing. Seating Inspection Ensure seal flange sits fully flush against hub housing face without tilt. Visual Check Examine sealing lip for nicks and seal‑body deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate hub assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip from scratch. Outer package ：Reinforced export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection: Moisture‑proof, dust‑proof and anti‑collision packing to prevent deformation during transit.

FAQ

How to submit an RFQ and get a quotation?

1) Open the inquiry page and enter company and contact details. 2) Provide model/size/quantity and duty conditions. 3) Note sample needs (intent=sample) when required. 4) Submit — we typically reply within 24 hours with an actionable quote and lead time. Final price and schedule follow the formal quotation.

What is your typical MOQ? Can you support small trial orders?

We support small trial lots for standard items. Production MOQ depends on tooling, material and process. Submit model/size/qty via the inquiry form for an actionable MOQ and lead time. Final price and schedule follow the formal quotation.

What are lead times for standard vs custom parts?

Stock/standard sizes are faster; custom dimensions, special materials or tooling take longer. Lead time depends on quantity and capacity—confirm via RFQ. Mark urgent needs in the inquiry notes.

I only have a competitor/OEM part number—can you cross-reference?

Yes. Provide the reference PN, key dimensions (ID/OD/height) and duty (media, temperature, pressure). We match equivalents in the catalog; use the Cross Reference page for keyword search. Final selection follows drawing and duty confirmation.

Which sealing materials do you use? How to choose for high temperature or special media?

Common materials include NBR, FKM/FPM, PTFE and silicone—matched to media, temperature and pressure. Share working temperature, media and motion type; we recommend a grade and note limits on the quote.

Do you support OEM/ODM, private packing and marking?

Yes—OEM/ODM from drawings/samples and agreed packing/marking. Share target market compliance needs and volume estimates; we confirm feasibility, tooling and production cadence at RFQ.

Do you export? What trade terms and payment methods are available?

We export to international buyers. Terms and payment (e.g. T/T) are confirmed during RFQ. Note destination port/country and preferred terms; formal contracts and PIs follow mutual confirmation.

What QC is done before shipment? Can you provide test reports?

Pre shipment dimensional/visual checks per order; material certificates or test reports available as agreed by product/lot. Specify document types and standards in the RFQ.

How do I request samples? How are sample and freight fees handled?

Use the inquiry form with sample intent, model/size and ship to address. Sample/freight waivers depend on item and partnership intent—confirmed by sales email. Provide full specs to avoid wrong shipments.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

What are the advantages of your company?

We have Impressive Professional Technology, Experienced Technical Staffs, Strict Inspection Procedures, High Quality and Afforable Prices On Time Delivery, Problems identification & Solutions offers. Seal Design Proposal offers. Seals Tests for Endurance and Performance, PPAP Level IIl Submission. Strick Process Control, International Standard Criterias.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF.

How about your delivery time?

Existing molds: 30 days, depending on ordering quantity. New Molds: 60 days, depending on ordering quantity. Samples Submission: 21 28 days with existing toolings.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery

What is OEM 1026679 3453200450 oil seal used for?

118x174x16/28mm flanged‑cassette hub oil seal, NBR material, heavy‑duty truck wheel‑hub aftermarket replacement part. It retains wheel‑hub bearing grease and blocks mud and splash‑water for truck hub assembly.

What are full specifications?

Size:ID118mm × OD174mm, mounting thickness16mm, overall height28mm; OEM:1026679,3453200450; Material:NBR rubber + flanged metal shell + garter spring; Structure:RWDR‑KASSETTE flanged cassette seal; Working temperature:‑20℃ 120℃; Application:Heavy‑duty truck wheel‑hub sealing.

Which vehicle fits 1026679 / 3453200450 oil seal?

This flanged‑cassette oil seal is aftermarket replacement for heavy‑duty truck wheel hub. Please confirm shaft dimension, housing bore, flange profile and OEM cross‑numbers before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.
