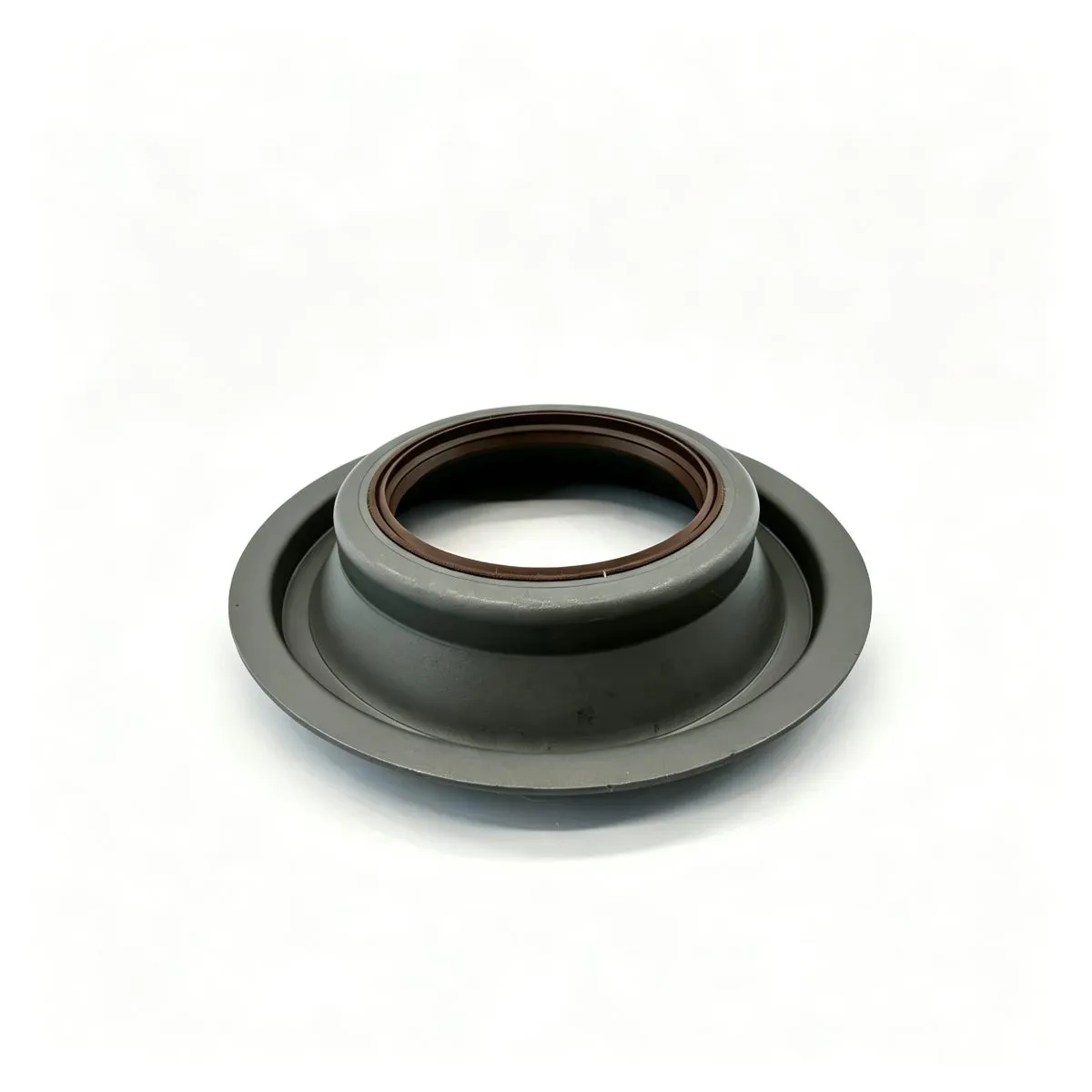

85x150/169x13.5/33mm Differential Shaft Oil Seal, N

Premium flange‑style differential shaft oil seal 85x150/169x13.5/33mm, NBR construction with bowl‑shaped metal shell and garter‑spring double lip. Specially engineered for heavy‑duty truck differential pinion shaft, prevents gear‑oil leakage and blocks heavy mud, dust and splash‑water under harsh road conditions. Factory‑new aftermarket truck spare part.

Key specs: 材料牌号: NBR | 规格型号: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft | 规格型号: 85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft

Technical summary

HTML summary for crawlers. PDF/CAD attachments remain authoritative for drawings; download on the interactive product page.

SpecValue
规格型号85x150/169x13.5/33mm｜Material:NBR sealing lip + painted bowl‑shaped carbon‑steel shell｜Structure:Flange bowl‑type double‑lip oil seal with garter spring｜Fit for heavy‑duty truck differential pinion shaft

Pricing: request a quote (B2B / wholesale).

Request a quote · Inquiry · Request a sample

Product details

Brand‑new aftermarket flange bowl‑style differential shaft oil seal 85x150/169x13.5/33mm, built with reinforced deep‑drawn bowl‑shaped metal shell and NBR double‑lip with garter spring, designed for heavy‑duty truck differential pinion shaft assembly. The unique bowl‑flange shell provides stable interference fit for truck axle housing bore. Pre‑loaded garter spring maintains constant radial pressure on rotating shaft. It locks differential gear‑oil inside housing and resists heavy mud, sand and splash‑water intrusion in tough off‑road and highway truck operating scenarios. Ideal for truck repair shops, heavy‑parts wholesalers and cross‑border bulk procurement. Core functions Gear‑oil retention: Stop differential gear‑oil leakage under heavy load, vibration and shock from truck driving Heavy‑duty contamination exclusion: Block thick mud, road grit and splash‑water for poor‑road truck working environment Reinforced bowl‑shaped metal shell: Anti‑rust coating, anti‑deformation for heavy‑truck press‑fit installation Garter‑spring pre‑load: Stable sealing performance under large temperature swings and continuous vibration

Material and process

Material ：NBR nitrile rubber sealing lip, anti‑rust painted deep‑draw carbon‑steel bowl‑flange shell, stainless steel garter spring Structure ：Flange bowl‑type double‑lip rotary shaft oil seal Key properties ：Oil‑resistant, heavy‑dust‑proof, anti‑vibration, anti‑aging, impact resistant Working temperature:‑20℃ +120℃ Manufacturing features High‑temperature vulcanization bonding between rubber lip and bowl‑shaped metal shell, resist rubber‑metal separation under heavy truck vibration. Precision‑ground sealing lip to reduce friction heat and extend service‑life under long‑time continuous rotation. Anti‑rust painted bowl‑flange shell adapts to harsh heavy‑truck under‑carriage environment. NBR compound compatible with heavy‑duty truck differential gear‑oil. Upgrade option ：FKM fluoro‑rubber variant for higher‑temperature heavy‑load operating conditions.

Application and compatibility

Product Type ：Bowl‑flange differential pinion shaft oil seal for heavy‑duty truck Key dimension ：ID85mm × OD150/169mm × dual width13.5/33mm Compatible media ：Heavy‑duty truck differential gear‑oil. Working conditions:Heavy‑truck differential pinion shaft, withstand heavy load, strong vibration, mud and splash‑water. Not suitable for ：Strong corrosive solvents, extreme ultra‑high‑temperature special‑purpose equipment. Fit applications ：Aftermarket replacement seal for heavy‑duty truck differential repair. Buyer reminder ：This is aftermarket replacement truck spare part. Please verify shaft diameter, housing bore and flange profile before placing order. Mismatched dimension or housing profile will cause gear‑oil leakage right after installation.

Selection guide

Selection Tips 1. Confirm dimension ID85mm, OD150/169mm, dual width13.5/33mm and bowl‑flange seal structure. 2. Standard NBR version for regular heavy‑truck gear‑oil environment; choose FKM upgrade for high‑temperature heavy‑load scenarios. 3. Inspect truck differential pinion shaft and housing bore before installation; repair shaft wear, corrosion and burrs. Damaged mating surfaces will trigger premature oil‑seal leakage. Installation Steps Preparation Fully clean differential housing bore, flange seating surface and pinion shaft, remove old seal fragments, grease dirt and metal burrs. Pre‑lubrication Coat sealing lip and shaft surface with matched heavy‑duty differential gear‑oil. Dry installation is strictly forbidden; dry friction will burn sealing lip quickly. Orientation Confirmation Main sealing lip points toward gear‑oil cavity; outer dust lip faces outward. Wrong installation direction leads to oil leakage and lost mud‑proof protection. Vertical Press‑fit Use dedicated press‑sleeve tool to press bowl‑flange oil‑seal evenly and vertically. Never strike rubber lip or thin bowl‑flange directly, to avoid shell deformation and lip tearing. Seating Inspection Ensure full flat contact between seal flange and housing seating surface, no tilt or gap. Visual Check Examine sealing lip for invisible nicks and bowl‑shell deformation; tiny hidden damage will cause seepage after commissioning. Rotation Test Manually rotate pinion shaft assembly to confirm smooth rotation without abnormal binding resistance.

Packaging and delivery

Inner package ：Individual anti‑dust poly bag for each piece to protect sealing lip and bowl‑flange from scratch and dent. Outer package ：Reinforced heavy‑export carton. Packing quantity ：Adjustable per purchase requirement. MOQ ：Stock items no MOQ, sample order supported. Lead‑time ：Stock goods ship within 3‑5 working days; custom logo & export‑special‑packaging orders 30‑45 working days. Custom options ：Custom logo printing available, custom‑order MOQ≥1000 pcs. Shipping protection:Moisture‑proof, dust‑proof and anti‑collision packing to prevent bowl‑flange deformation during transit.

FAQ

How to submit an RFQ and get a quotation?

1) Open the inquiry page and enter company and contact details. 2) Provide model/size/quantity and duty conditions. 3) Note sample needs (intent=sample) when required. 4) Submit — we typically reply within 24 hours with an actionable quote and lead time. Final price and schedule follow the formal quotation.

What is your typical MOQ? Can you support small trial orders?

We support small trial lots for standard items. Production MOQ depends on tooling, material and process. Submit model/size/qty via the inquiry form for an actionable MOQ and lead time. Final price and schedule follow the formal quotation.

What are lead times for standard vs custom parts?

Stock/standard sizes are faster; custom dimensions, special materials or tooling take longer. Lead time depends on quantity and capacity—confirm via RFQ. Mark urgent needs in the inquiry notes.

I only have a competitor/OEM part number—can you cross-reference?

Yes. Provide the reference PN, key dimensions (ID/OD/height) and duty (media, temperature, pressure). We match equivalents in the catalog; use the Cross Reference page for keyword search. Final selection follows drawing and duty confirmation.

Which sealing materials do you use? How to choose for high temperature or special media?

Common materials include NBR, FKM/FPM, PTFE and silicone—matched to media, temperature and pressure. Share working temperature, media and motion type; we recommend a grade and note limits on the quote.

Do you support OEM/ODM, private packing and marking?

Yes—OEM/ODM from drawings/samples and agreed packing/marking. Share target market compliance needs and volume estimates; we confirm feasibility, tooling and production cadence at RFQ.

Do you export? What trade terms and payment methods are available?

We export to international buyers. Terms and payment (e.g. T/T) are confirmed during RFQ. Note destination port/country and preferred terms; formal contracts and PIs follow mutual confirmation.

What QC is done before shipment? Can you provide test reports?

Pre shipment dimensional/visual checks per order; material certificates or test reports available as agreed by product/lot. Specify document types and standards in the RFQ.

How do I request samples? How are sample and freight fees handled?

Use the inquiry form with sample intent, model/size and ship to address. Sample/freight waivers depend on item and partnership intent—confirmed by sales email. Provide full specs to avoid wrong shipments.

How do you make our business long-term and good relationship?

1.We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

What are the advantages of your company?

We have Impressive Professional Technology, Experienced Technical Staffs, Strict Inspection Procedures, High Quality and Afforable Prices On Time Delivery, Problems identification & Solutions offers. Seal Design Proposal offers. Seals Tests for Endurance and Performance, PPAP Level IIl Submission. Strick Process Control, International Standard Criterias.

What is your terms of payment?

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

What is your terms of delivery?

EXW, FOB, CFR, CIF.

How about your delivery time?

Existing molds: 30 days, depending on ordering quantity. New Molds: 60 days, depending on ordering quantity. Samples Submission: 21 28 days with existing toolings.

Can you produce according to the samples?

Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Do you test all your goods before delivery?

Yes, we have 100% test before delivery

What is 85x150/169x13.5/33mm oil seal used for?

85x150/169x13.5/33mm bowl‑flange differential pinion shaft oil seal, NBR material, aftermarket heavy‑duty truck repair replacement part, prevents differential gear‑oil leakage and blocks heavy mud and splash‑water.

What are full specifications?

Size:85x150/169x13.5/33mm; Material:NBR lip + painted bowl‑flange carbon‑steel shell + garter spring; Working temperature:‑20℃ 120℃; Application:Heavy‑duty truck differential pinion shaft sealing.

Which vehicle fits 85x150/169x13.5/33mm differential oil seal?

This bowl‑flange oil seal is aftermarket replacement for universal heavy‑duty truck differential repair, please confirm shaft dimension, housing bore and flange profile before purchase.

Do you support custom logo and export packaging?

Yes, custom logo and export‑oriented packaging are available. Custom MOQ is 1000 pieces with production lead‑time 30‑45 working days.
